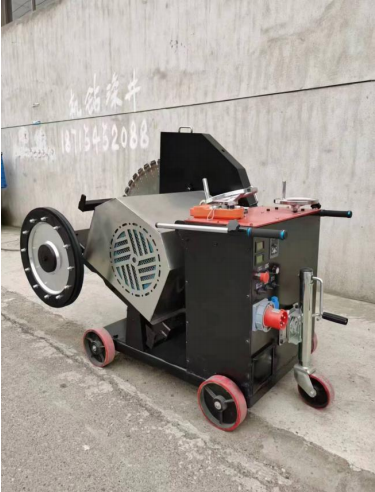

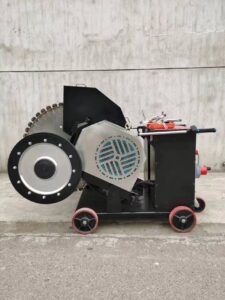

Dual type road saw machine
Product Description
One side can install 600-1200 mm blade cutting as floor saw machine
Other side can use 500mm flywheel as simple wire saw machine
| Power | 22 KW | 37 kw |
| fly wheel | 500 mm | 500 mm |
| Moving | Automatic walking | Automatic walking |
| Working power voltage | 380/480V | 380/480V |
| Frequency | 50/60HZ | 50/60HZ |
| Bilateral main wheel | support | support |
| Rotation | 960 rpm | 1260 rpm |
| Operation | Remote control | Remote control |
| Blade range | 600-1200 mm | 600-1200 mm |
| Blade side cutting depth | 50 cm | 50 cm |
| Blade middle hole | 35/60 mm | 35/60 mm |
| Cutting and lifting | Feeding by remote control | Feeding by remote control |
| Weight | 400 kg | 450 kg |
| Blade hole | 35 / 60 mm | 35 / 60 mm |
Mark : The machine is divided into single frequency conversion motor and double frequency conversion motor. Single frequency conversion can’t adjust speed of main motor .

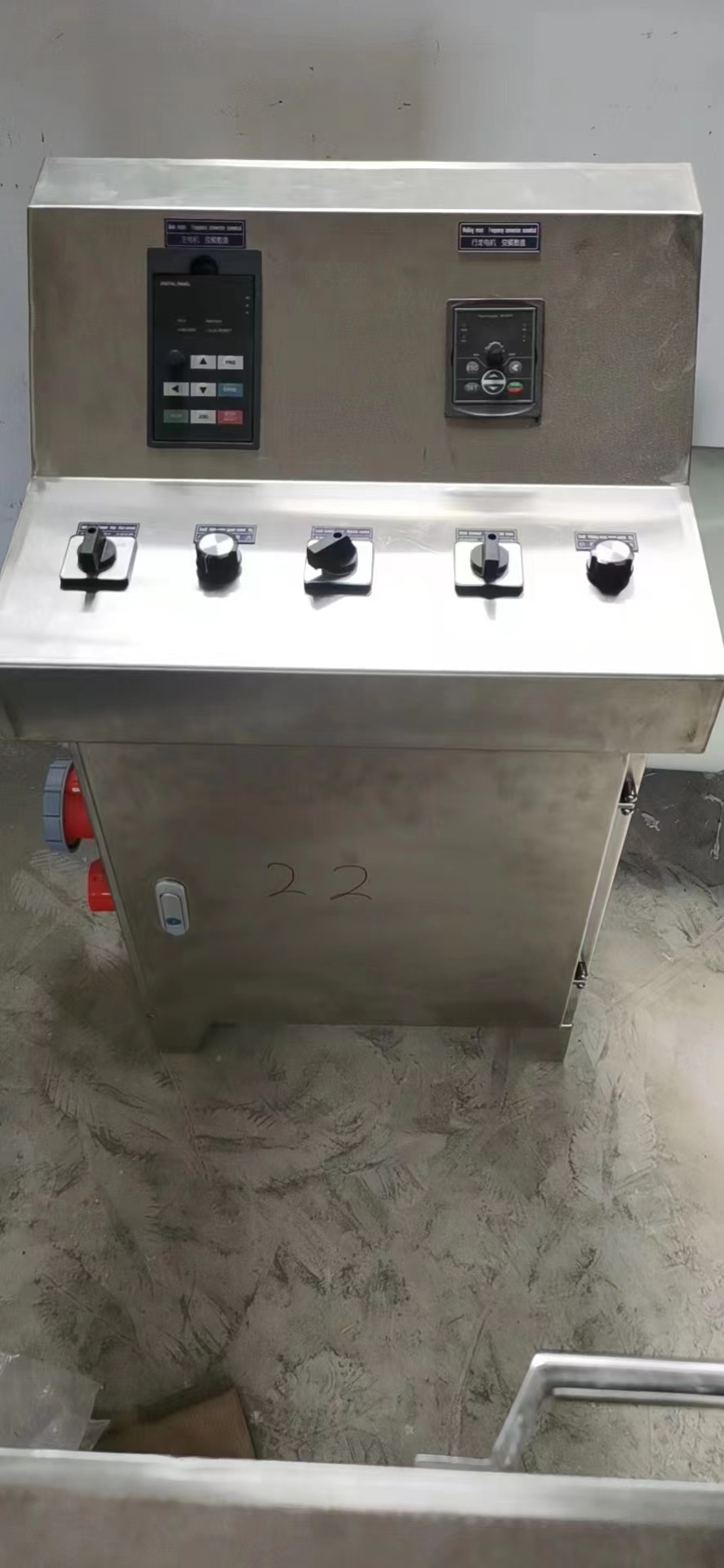

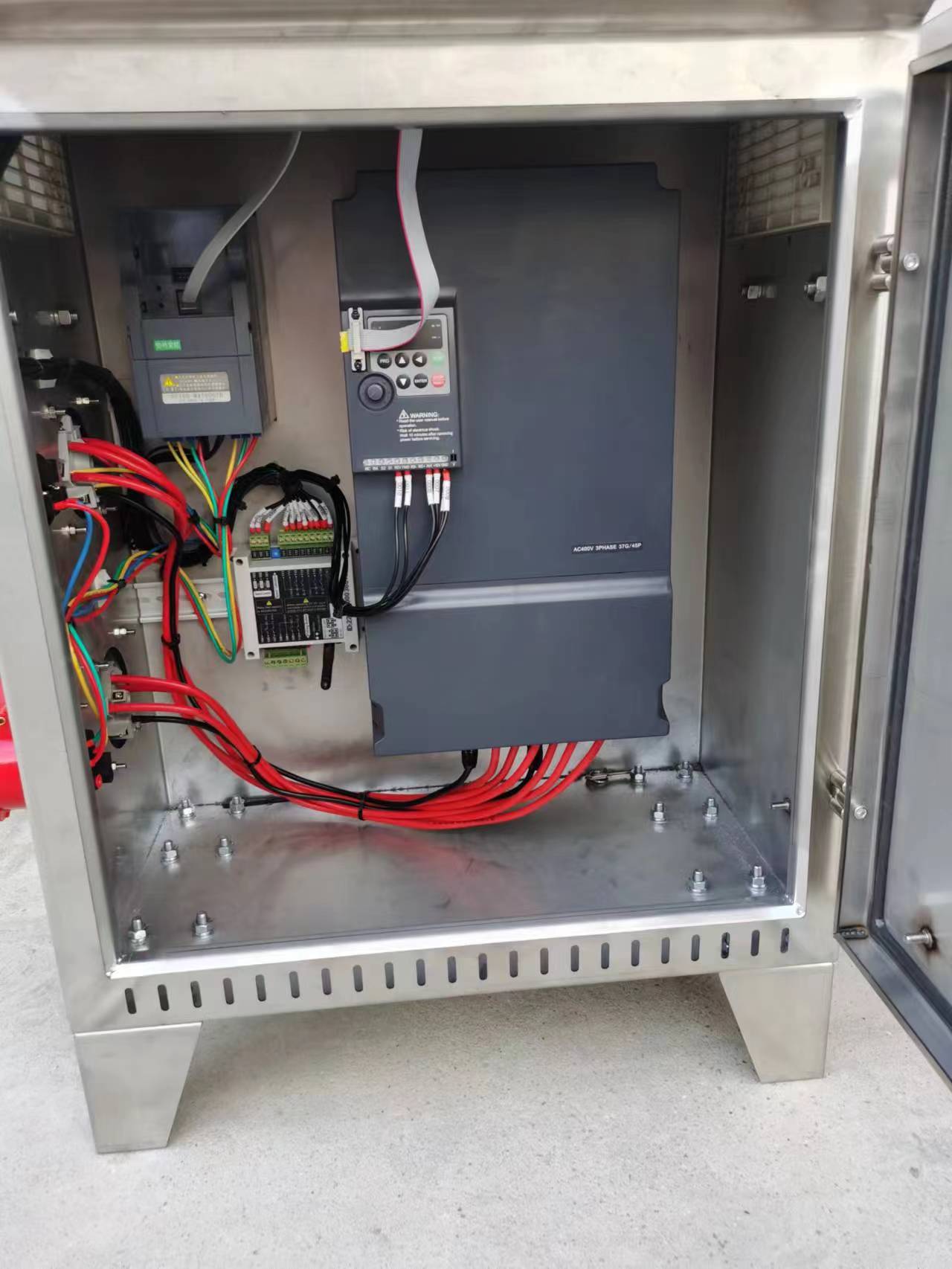

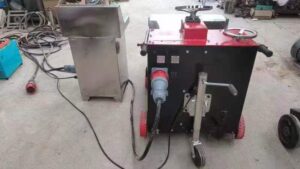

In some regions with strong sandstorms, such as Middle Eastern countries, some customers want to customize an additional inverter box. It can be manually or automatically operated remotely. This box and machine can be separated by a distance of 10-20 meters. The independent inverter box has the benefits of wind, sand, and corrosion resistance.
Product Specification
wooden box package
cutting video :https://youtube.com/shorts/H6aZlcfJp_E?si=37K3e1rJTjCvC2KJ
operation video :https://youtube.com/shorts/N9heMyhQZfw?si=pJPhTLJKD_wz3cjD
