22 Kw High frequency wall saw and wire saw system*
Product Description
| Power | 15 kw | 17 kw | 22 kw | 23 kw |
| Wall saw head weight ( not include motor ) | 26 kg | 26 kg | 26 kg | 26 kg |
| Main motor weight | 21 kg | 18 kg | 23 kg | 21 kg |
| 220V electric box | support | |||
| Use blade range | 600-1400mm | 600-1800mm | ||
| For wire saw system | support | support | support | support |
| Rated current | 27.8A/46A | |||
| Rotary arm movement range | 360° | |||
| Input voltage requirements | Single-phase 220V / three-phase 380V | |||
| Mounting hole diameter of saw blade | φ35\φ50\φ60
|
|||
| Control mode | Wireless remote control | |||
| Automatic cruise control function | Automatic working feeding and depth feeding | |||
| Cooling system | Water cooling | |||
| Rail structure | Rack center, both reverse and positive can be installed | |||
| Rail material | High strength industrial aluminum alloy | |||
| Cutting head cable connection mode (all motors) | IP67 Aviation plug | |||
| Motor fault protection function | Overload protection
Over temperature protection Overvoltage and undervoltage protection When encountering steel bars with high strength, automatic protection will be activated to prevent the saw blade from getting stuck |
|||

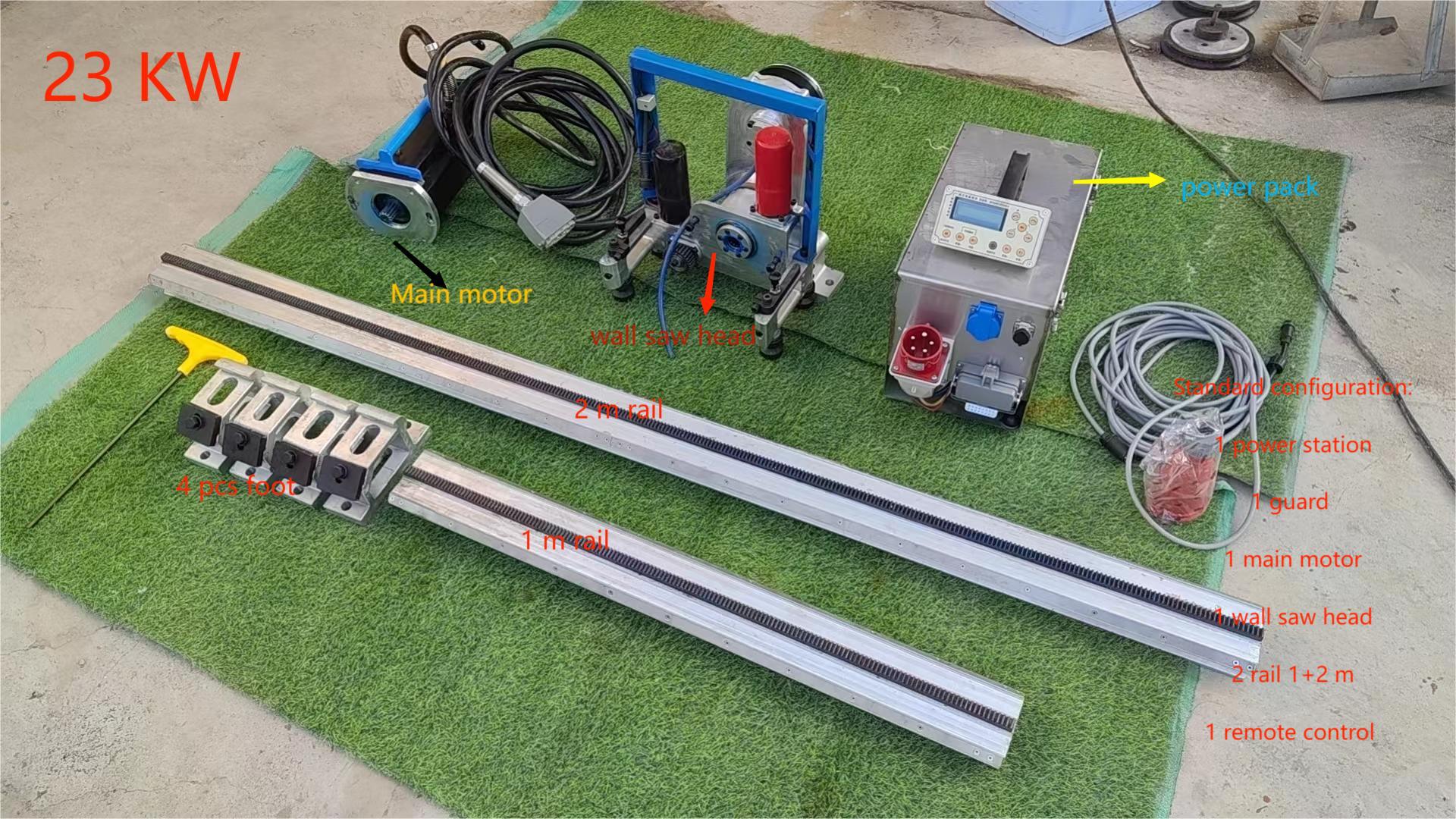

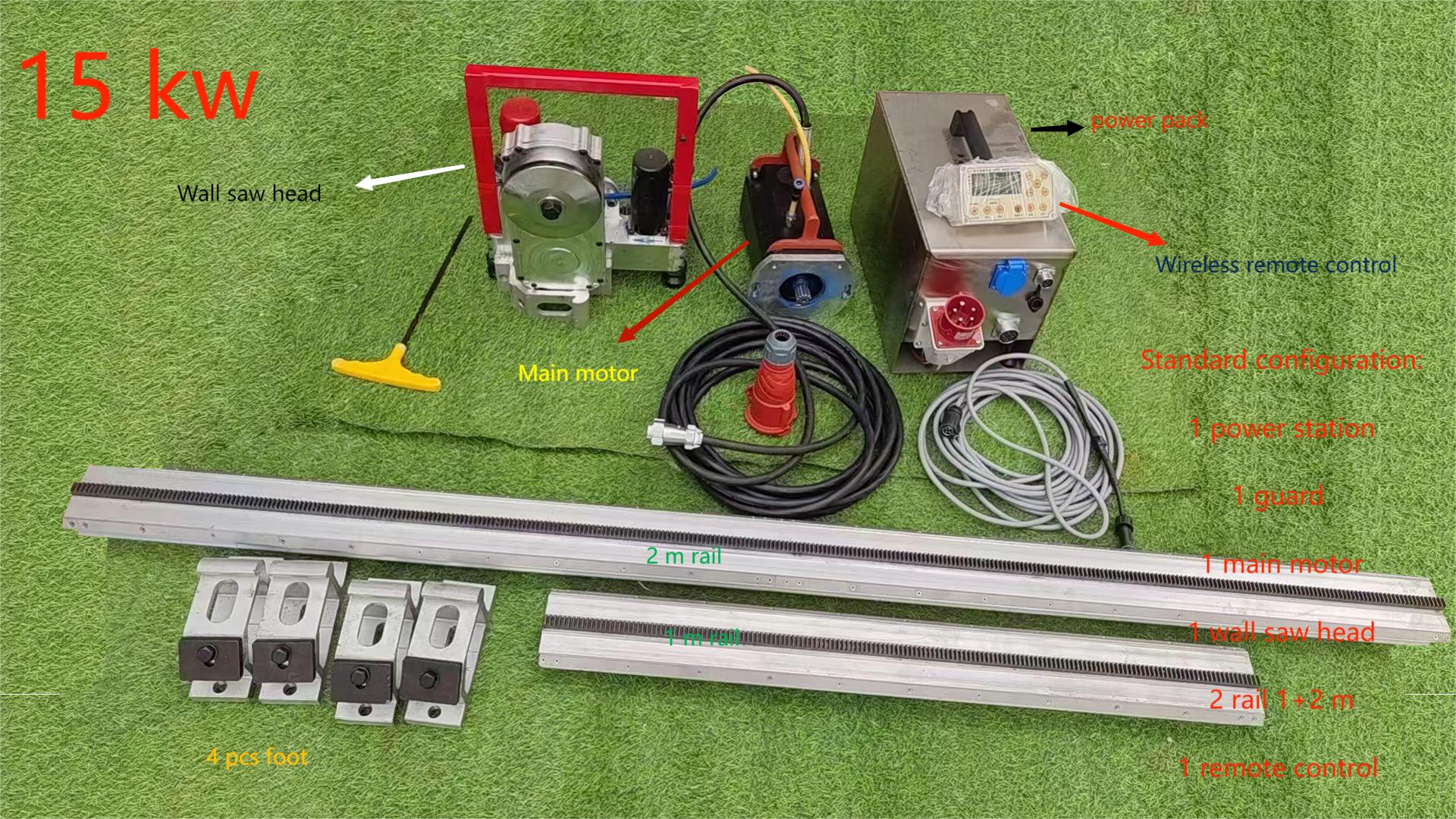

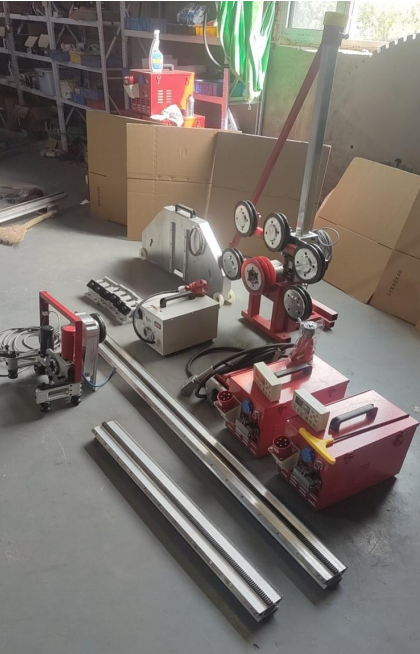

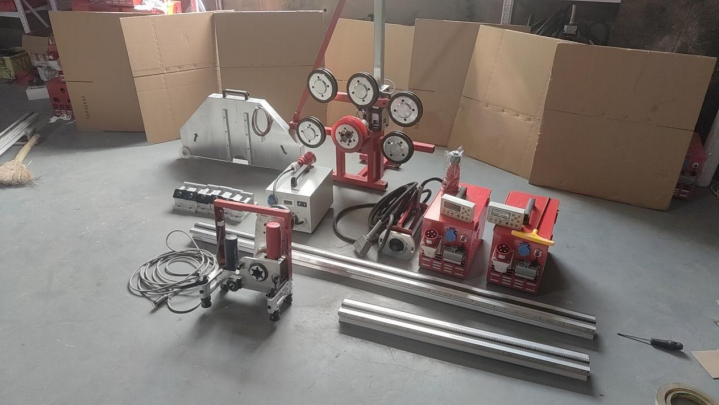

Standard configuration:( wall saw )
1 pcs wall saw head

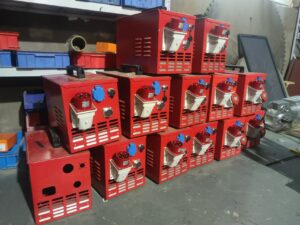

1 pcs power pack
1 pcs guard
1 pcs 1 meter rail
1 pcs 2 meter rail
4 pcs foot of rail
2 pcs remote control
1 pcs allen key
Other optional accessories:
Blade
Wire saw system ( wire saw stand )
220 V electric box
Extra power pack
Mark:
- These two motors are universal ( wall saw and wire saw )

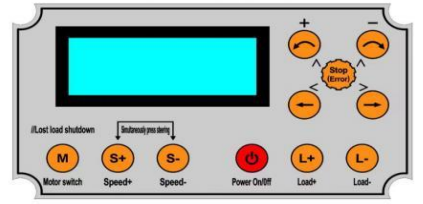

- The quality guarantee for core accessories is 3 years. Please do not purchase additional motors or other major accessories.Remote control

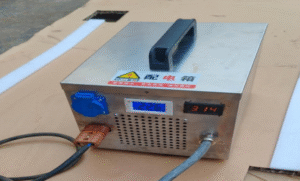

220 V electric box
Product Specification
This product has been continuously updated with a smart operating system. For instance, when encountering a particularly thick steel bar that the saw blade cannot cut through, it will automatically brake to prevent the saw blade from getting stuck in the steel bar. The automatic cruise function can adjust the cutting speed based on the object being cut, making the process more convenient for the user.
Customers who have already purchased our products do not need to worry about updating the system. When you purchase products next time, we will send you the updated operating system content in a storage device. We will also prepare a video in advance showing how to use the updates.
*The core components of this product are covered by a 3-year warranty. If damaged due to non-human factors, new components will be provided for free (a video recording of the damaged component is required) Replace accessories after 3 years (small accessories are free of charge, and for large accessories, the replacement will be subject to a price discount of 50-70% depending on the situation)
wire saw cutting video :https://youtube.com/shorts/moGhL4Hfo9I?si=zMqbBg5Ndw3fP0Ys
wall saw cutting video :https://youtube.com/shorts/0Q2S1egKur4?si=A162M4GMjXbHlQfk
