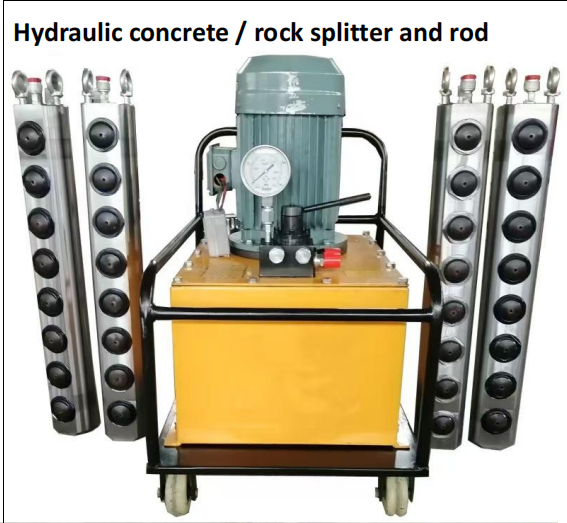

Hydraulic concrete / rock splitter and rod
Product Description
| Model |
Drilling hole (Diameter ) |
Minimum drilling depth |
Crack width |
Splitting time |
Splitting force |
weight |
| HY32A | 3 2 – 3 5 m m | ≥270mm | 10-30mm | 5-12s | 358T | 20kg |
| HY32B | 3 2 – 3 5 m m | ≥300mm | 10-30mm | 5-12s | 358T | 21kg |
| HY35A | 3 5 – 3 8 m m | ≥300mm | 10-35mm | 5-12s | 420T | 22kg |
| HY35B | 3 5 – 3 8 m m | ≥400mm | 10-35mm | 5-12s | 420T | 25kg |
|
HY38A |
3 8 – 4 2 m m | ≥350mm | 10-38mm | 5-12s |
480T |
25kg |
|
HY38B |
3 8 – 4 2 m m | ≥450mm | 10-38mm | 5-12s |
480T |
28kg |
|
HY40A |
4 0 – 4 5 m m | ≥500mm | 10-40mm | 5-12s |
500T |
32kg |
|
HY40B |
4 0 – 4 5 m m | ≥600mm | 10-40mm | 5-12s |
500T |
35kg |
Product Specification
220 V and 380 V

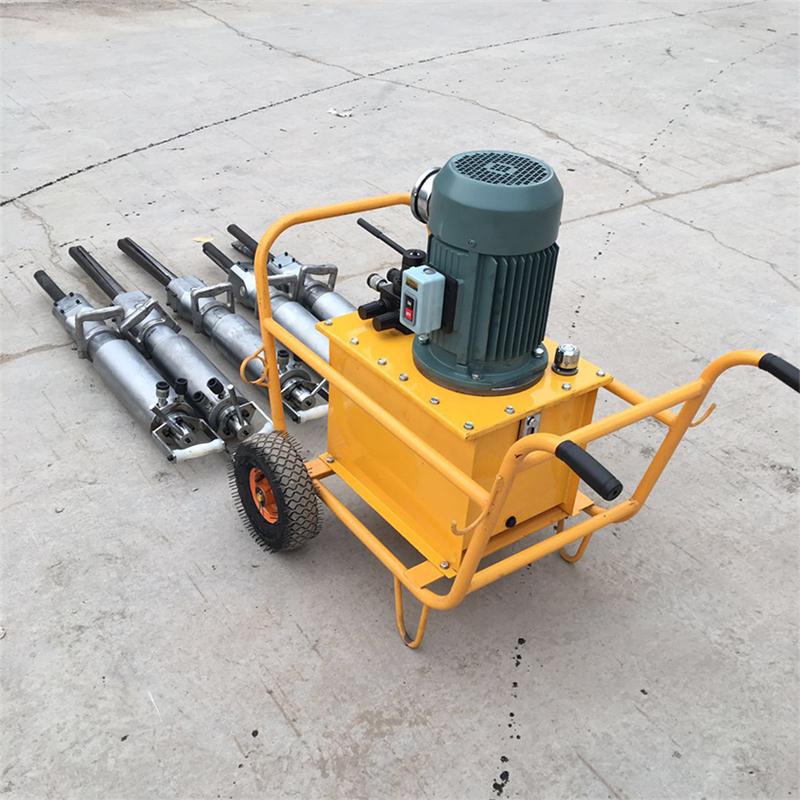

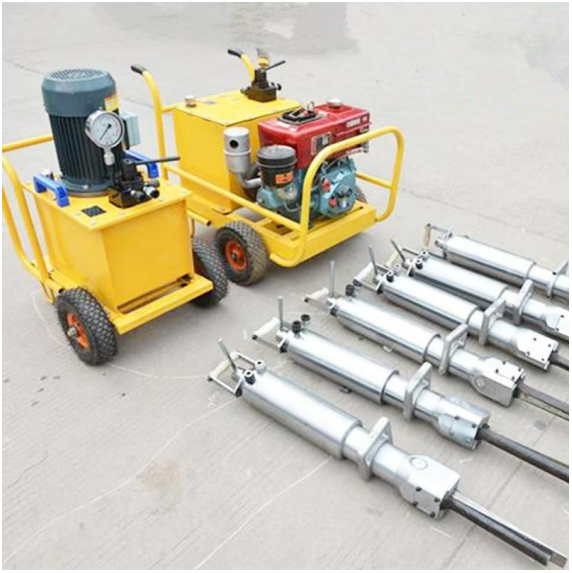

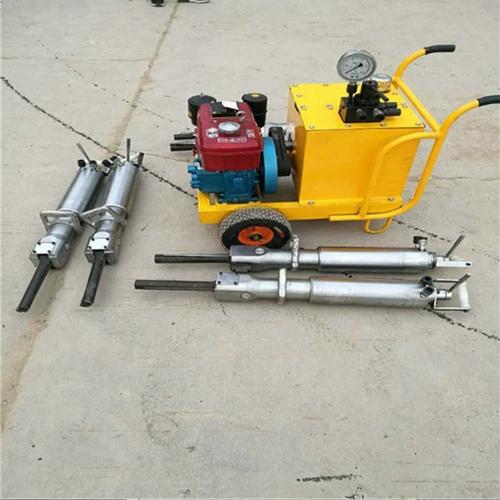

Electric and Diesel power pack
Splitter for concrete and rock , the wedge length is different

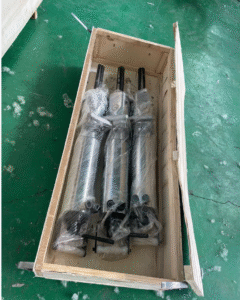

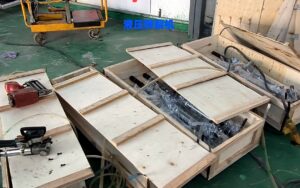

package as this
